Durable and Efficient Arch Fender for Ports, Shipyards, and Marine Terminals — Factory Direct from YS Traffic Safety

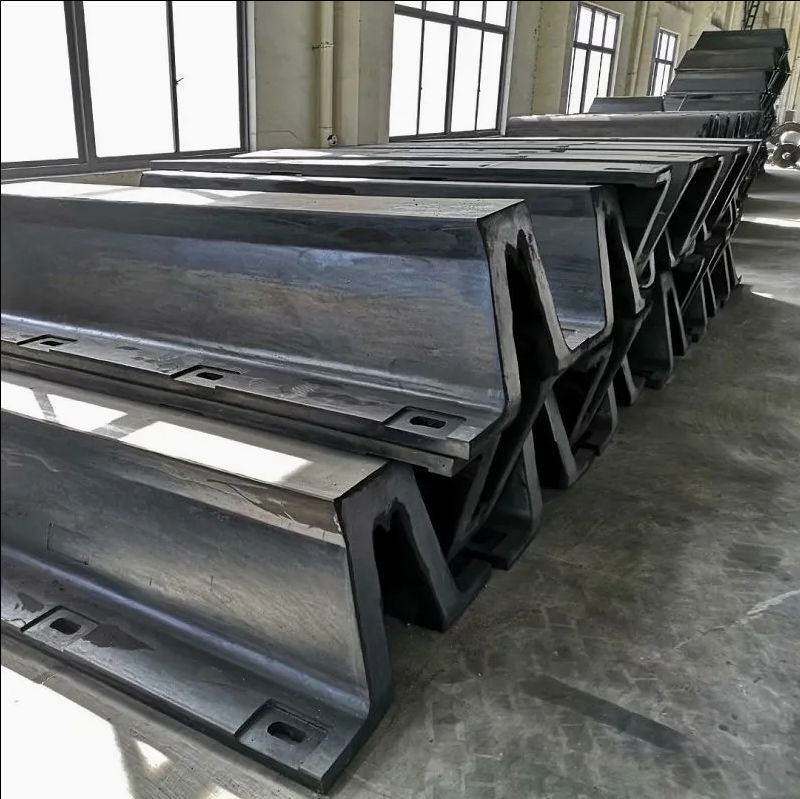

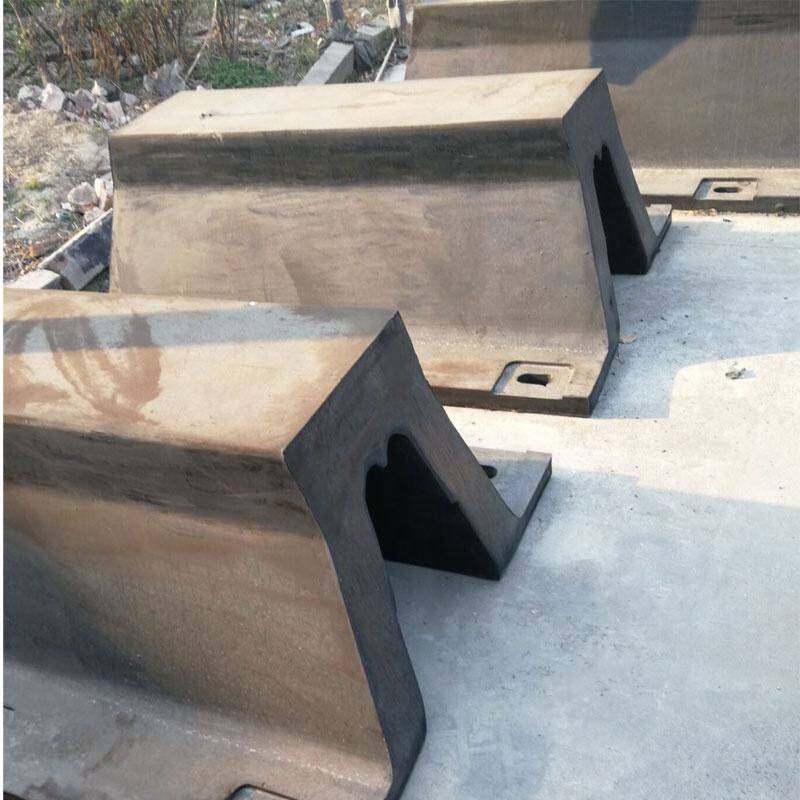

The YS-A200H Arch Type Rubber Fender provides excellent energy absorption and low reaction force, making it ideal for protecting docks, quay walls, and vessels. With a compact structure and easy installation, this model is widely used in marine terminals and heavy-duty loading docks.
Main Model:
YS-A200Hx1.0M+1.1M
型号（Type） |
规格（Specification） |
|||||||||||||
|
H |
L |
L1 |
B |
B1 |
B2 |
C |
d |
e |
f |
h |
Q |
S |
N |
DA-A200Hx1.0M+1.1M |
200 |
1000 |
1100 |
145 |
400 |
320 |
120 |
29 |
75 |
105 |
30 |
860 |
128 |
2 |
DA-A200Hx1.5M+1.6M |
200 |
1500 |
1600 |
145 |
400 |
320 |
120 |
29 |
75 |
105 |
30 |
680 |
128 |
3 |
DA-A200Hx2.0M+2.1M |
200 |
2000 |
2100 |
145 |
400 |
320 |
120 |
29 |
75 |
105 |
30 |
620 |
128 |
4 |
DA-A200Hx2.5M+2.6M |
200 |
2500 |
2600 |
145 |
400 |
320 |
122.5 |
29 |
75 |
105 |
30 |
785 |
128 |
4 |
DA-A200Hx3.0M+3.1M |
200 |
3000 |
3100 |
145 |
400 |
320 |
120 |
29 |
75 |
105 |
30 |
715 |
128 |
5 |
DA-A200Hx3.5M+3.6M |
200 |
3500 |
3600 |
145 |
400 |
320 |
120 |
29 |
75 |
105 |
30 |
672 |
128 |
6 |
DA-A250Hx1.0M+1.125M |
250 |
1000 |
1125 |
175 |
500 |
410 |
130 |
32 |
90 |
125 |
33 |
865 |
160 |
2 |
DA-A250Hx1.5M+1.625M |
250 |
1500 |
1625 |
175 |
500 |
410 |
132.5 |
32 |
90 |
125 |
33 |
680 |
160 |
3 |
DA-A250Hx2.0M+2.125M |
250 |
2000 |
2125 |
175 |
500 |
400 |
132.5 |
32 |
90 |
125 |
33 |
620 |
160 |
4 |
DA-A250Hx2.5M+2.625M |
250 |
2500 |
2625 |
175 |
500 |
400 |
127.5 |
32 |
90 |
125 |
33 |
790 |
160 |
4 |
DA-A250Hx3.0M+3.125M |
250 |
3000 |
3125 |
175 |
500 |
400 |
132.5 |
32 |
90 |
125 |
33 |
715 |
160 |
5 |
DA-A250Hx3.5M+3.625M |
250 |
3500 |
3625 |
175 |
500 |
400 |
130 |
32 |
90 |
125 |
33 |
673 |
160 |
6 |
DA-A300Hx1.0M+1.15M |
300 |
1000 |
1150 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
870 |
195 |
2 |
DA-A300Hx1.5M+1.65M |
300 |
1500 |
1650 |
225 |
600 |
490 |
140 |
35 |
105 |
140 |
33 |
685 |
195 |
3 |
DA-A300Hx2.0M+2.15M |
300 |
2000 |
2150 |
225 |
600 |
490 |
137.5 |
35 |
105 |
140 |
33 |
625 |
195 |
4 |
Key Features:
High Energy Absorption, Low Reaction Force — Reliable dock and vessel protection with efficient energy dissipation.
Compact and Stable Structure — Simple arch shape allows easy installation and maintenance.
Durable Material — Made from premium natural rubber with excellent resistance to weather, ozone, and seawater.
Flexible Installation Options — Can be installed horizontally or vertically using bolts or frontal panels.
Customizable Lengths and Steel Accessories — Available in different lengths, colors, and with optional steel plates or chains.
Applications:

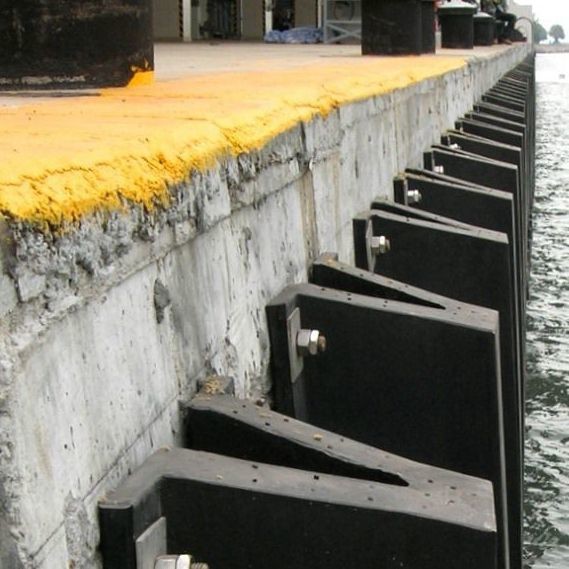

Port and dock facilities
Shipyard quay walls
Offshore loading platforms
Ro-Ro berths and industrial docks
Factory Advantage:
YS-Traffic integrates manufacturing + trade, offering cost-effective, customized marine fender solutions with consistent quality control and on-time delivery.
