Factory Direct · Multi-Channel Design · High-Strength Rubber Construction
Modular Interlocking · High-Visibility Safety Colors · OEM/ODM Available

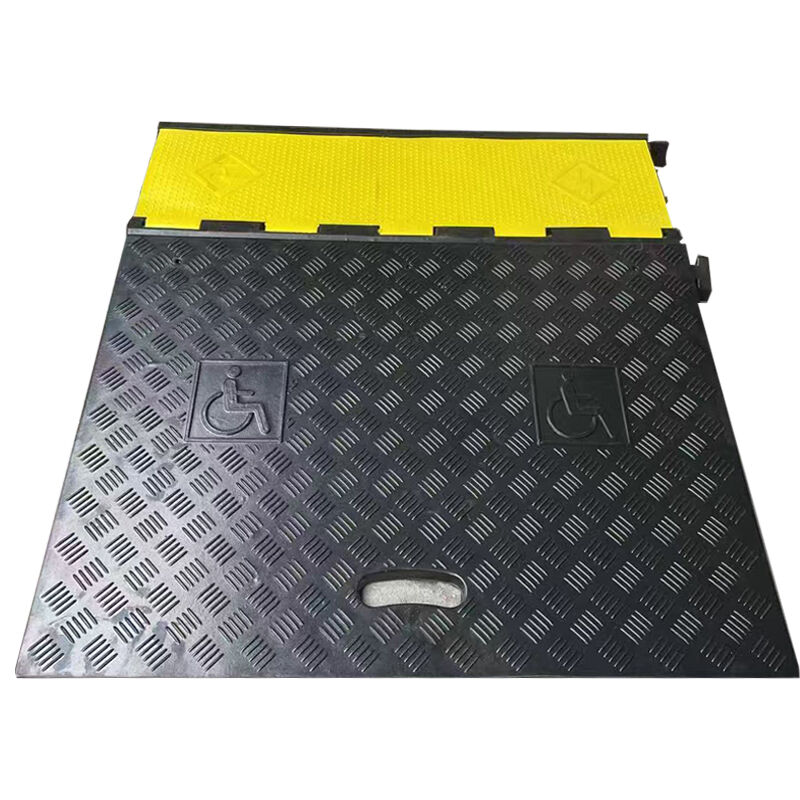

ADA-Compliant Low-Profile Ramp Design
Engineered with a gradual slope to allow safe access for wheelchairs, carts, and pedestrians while protecting cables underneath.

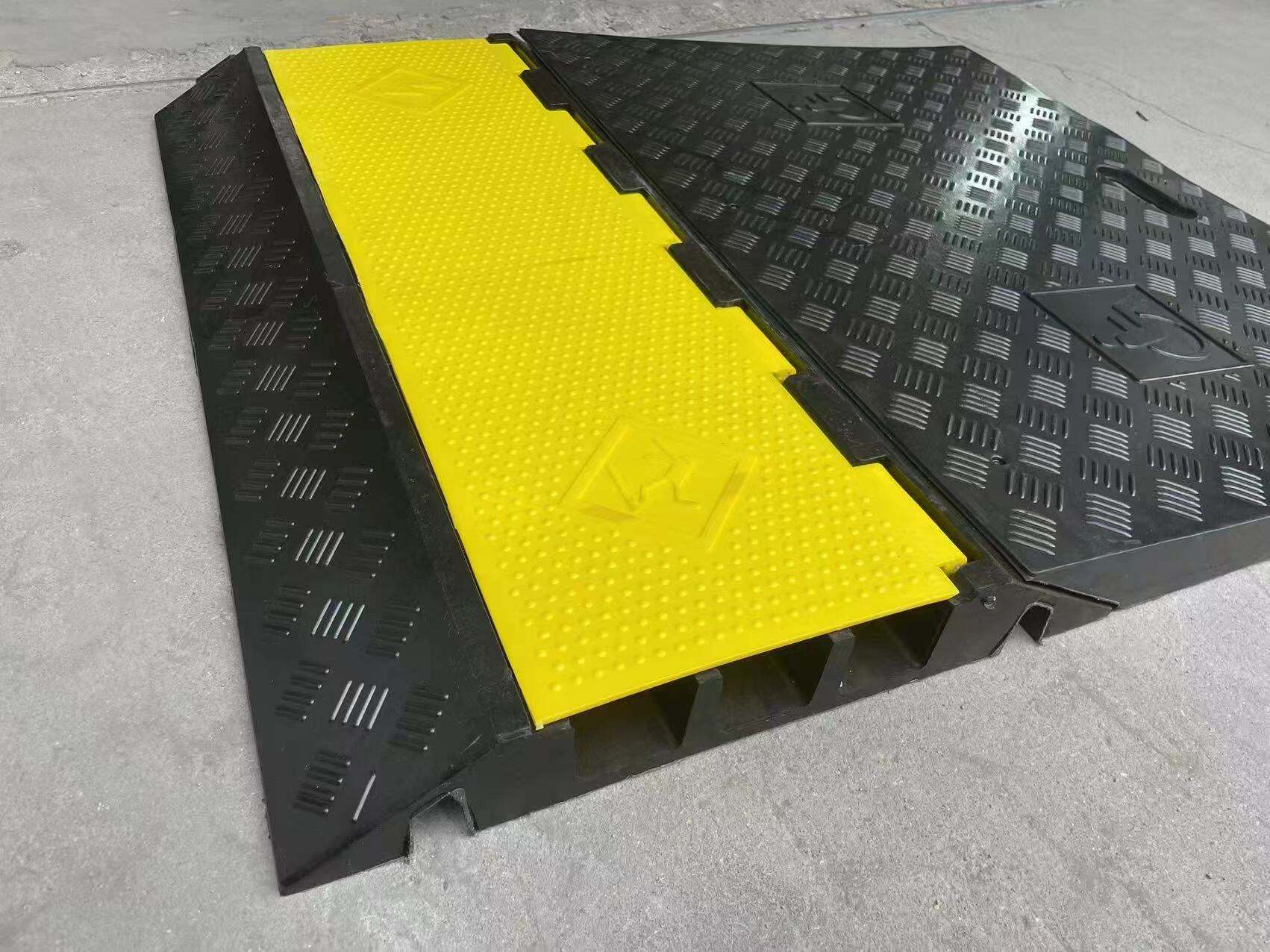

3-Channel Cable & Hose Protection
Three independent channels keep power cables, hoses, and data lines organized, protected, and separated.
Heavy-Duty Rubber Construction
Manufactured from high-density rubber for excellent load resistance, abrasion resistance, and long service life in high-traffic areas.
Anti-Slip Surface for Public & Industrial Use
Textured surface reduces slip risk in indoor and outdoor environments, improving overall site safety.

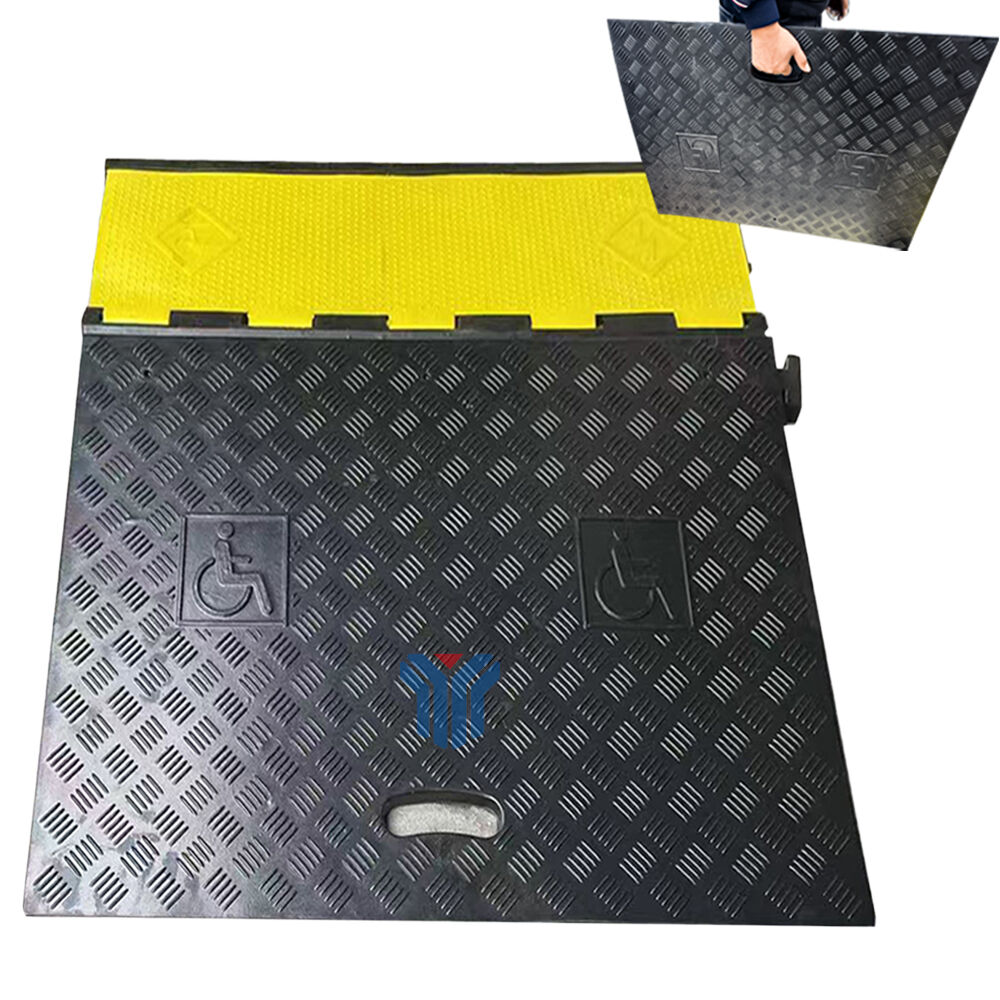

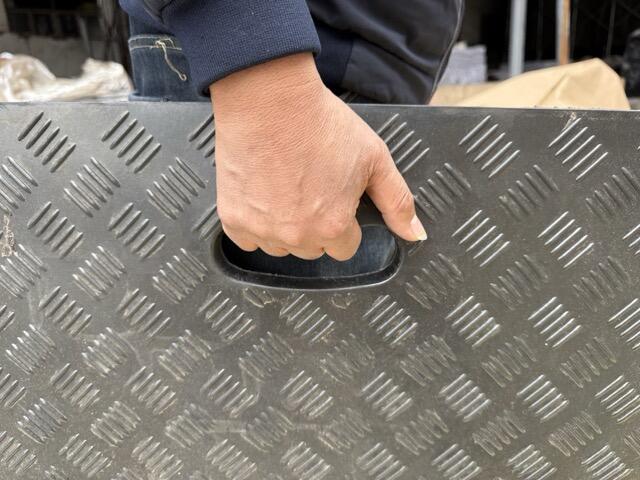

Integrated Carry Handle for Easy Deployment
Built-in handle allows quick positioning, relocation, and storage—ideal for temporary or mobile installations.

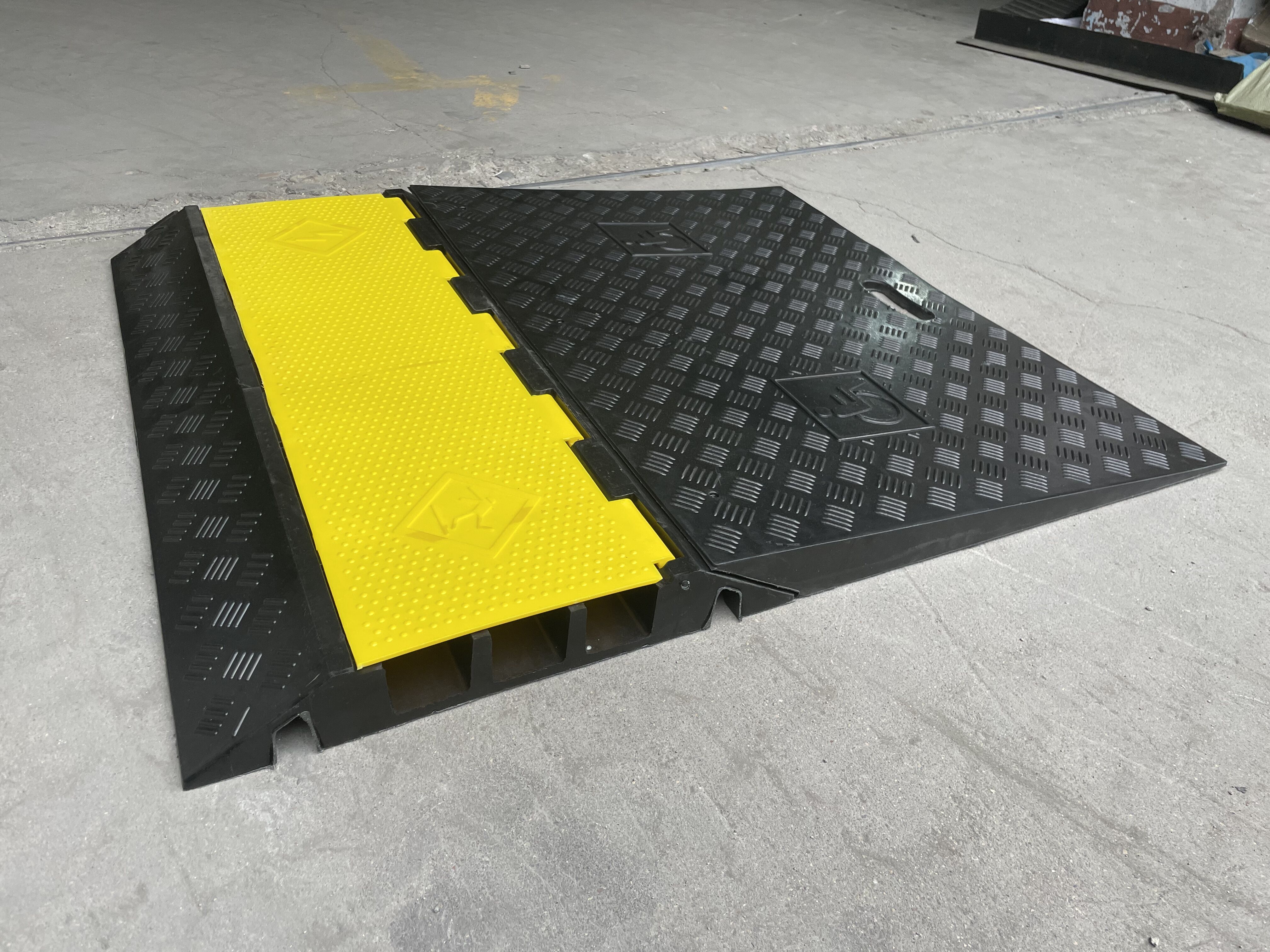

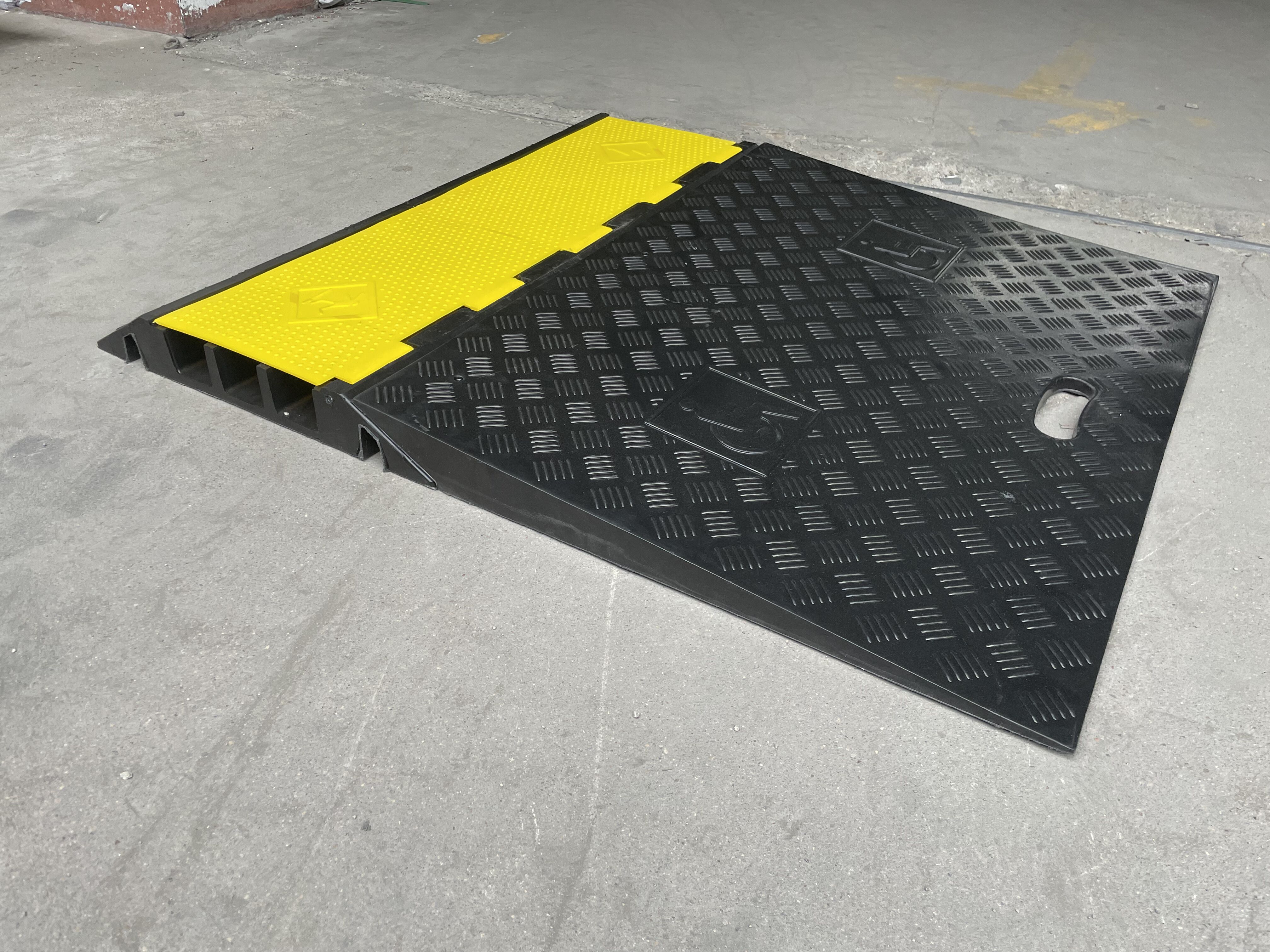

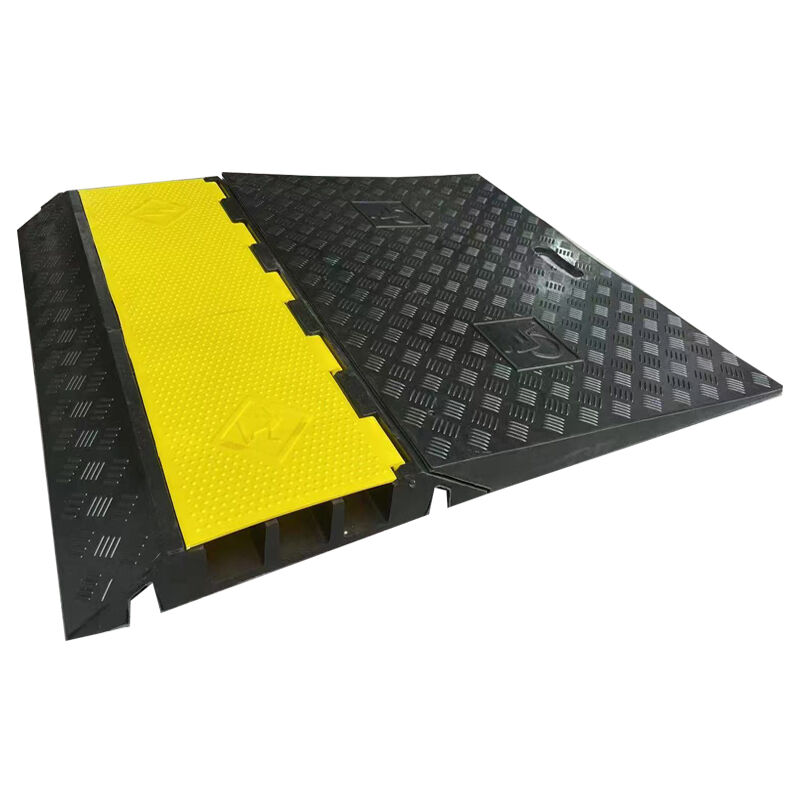

This ADA Compliant 3-Channel Cable Protector Ramp is designed for commercial, industrial, and public environments where cable protection and pedestrian safety are both critical.
As a factory-direct manufacturer, we focus on durability, compliance, and practicality for long-term B2B use.
The low-profile ADA ramp structure ensures smooth transitions for wheelchairs, trolleys, and foot traffic, while the internal channels protect cables and hoses from crushing, abrasion, and accidental damage.
The gradual ramp profile meets ADA accessibility requirements, reducing trip hazards and ensuring inclusive access in public spaces.
Three internal channels allow clean and efficient routing of electrical cables, extension cords, fiber lines, or hoses.
Produced using heavy-duty rubber with excellent compression resistance, suitable for repeated pedestrian and light vehicle traffic.
Anti-slip texture improves traction in warehouses, event venues, and outdoor environments, even under wet conditions.
The integrated carry handle supports fast installation without tools, making it suitable for both temporary and semi-permanent applications.
Event production & staging companies
Rental equipment companies
Warehouses & logistics centers
Construction and maintenance sites
Commercial buildings & public access areas
Temporary cable routing for exhibitions and trade shows

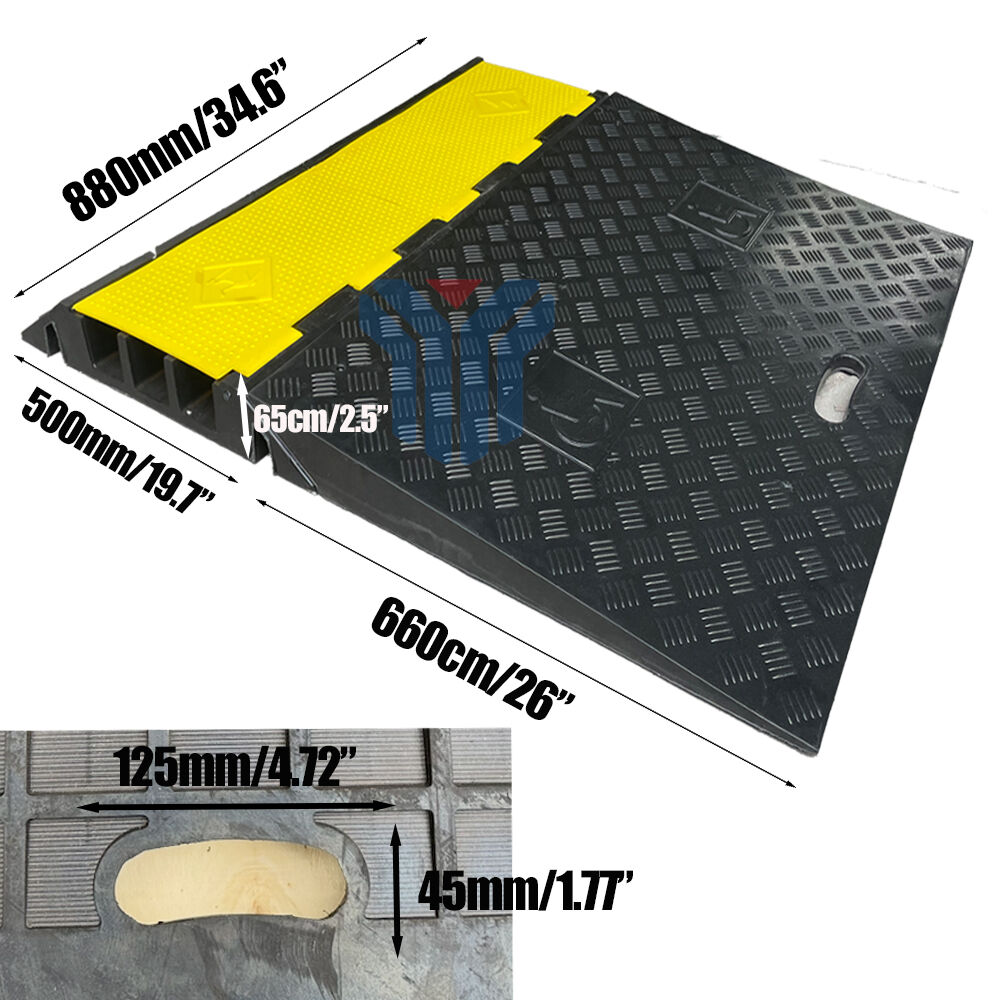

Channels: 3
Height: 65 mm
Length: 560 mm
Width: 880 mm
Ramp Length: 66 mm
Weight: 13.7 kg
Handle Size: 12.5 × 4 cm
Material: Heavy-Duty Rubber
Compliance: ADA Compliant
As a professional traffic safety and cable protection manufacturer, we offer:
OEM & ODM customization (logo, color, structure)
Stable mass production capacity
Consistent quality control from raw material to final inspection
Export experience for North America, Europe, and global markets
Factory-direct pricing for distributors, wholesalers, and project buyers
