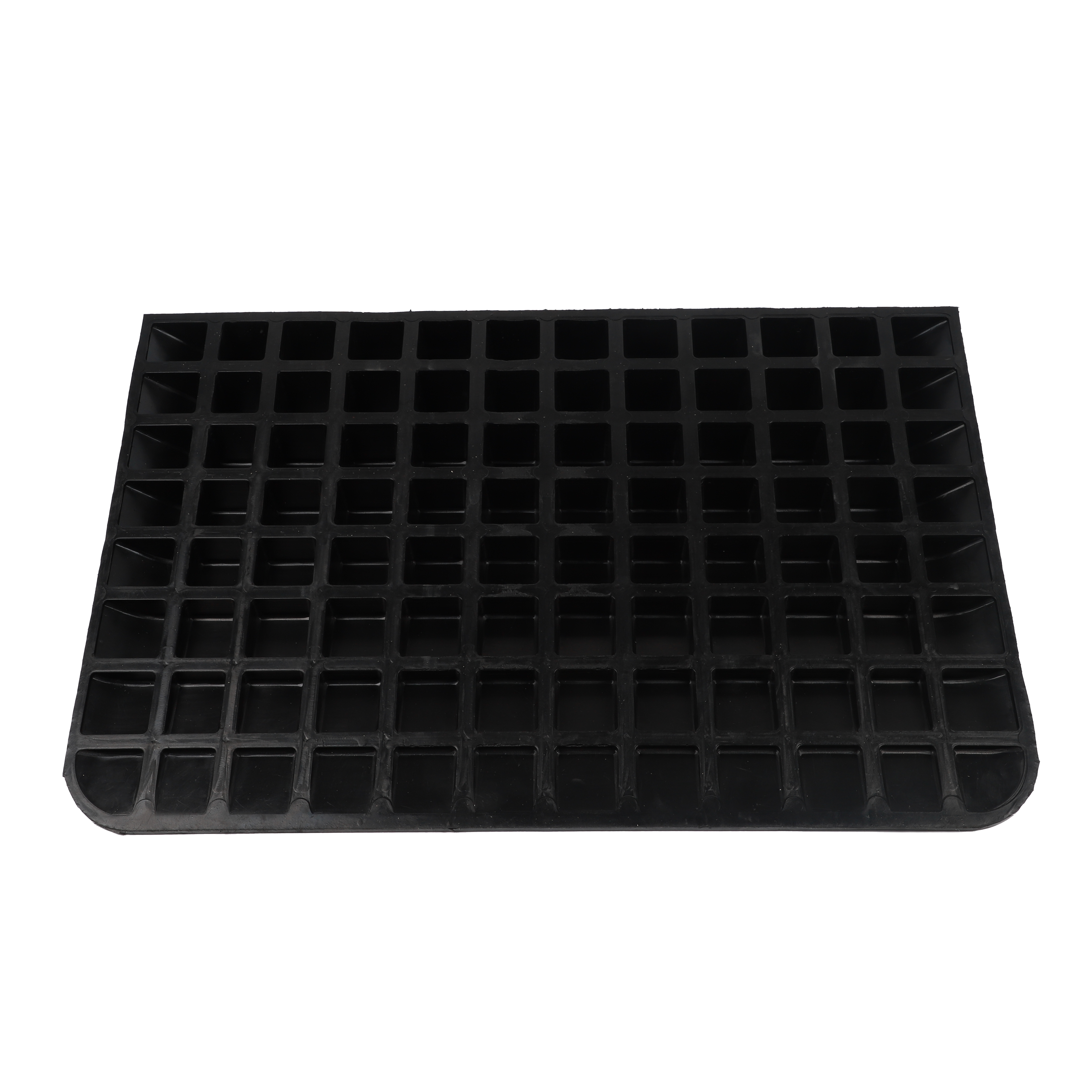

Premium Material & Reinforced Engineering: Manufactured from high-density, eco-friendly vulcanized Rubber using advanced compression molding. This ramp features a professional-grade grooved surface for multi-directional traction and a unique grid-structure bottom (as shown in images) that ensures optimal weight distribution and maximum ground adherence. It is engineered to be weather-resistant, oil-resistant, and anti-aging for long-term industrial use.
Substantial Dimensions for High Stability: Precision-engineered with professional specifications of 900mm (Length) x 610mm (Width) x 100mm (Height) and a substantial self-weight of 25.4kg. The significant weight and wide base ensure the ramp remains rock-solid and stationary under heavy loads, providing a safe and reliable transition for high thresholds and curbs.
Heavy-Duty Usage Scenarios & Targeted Users: With a robust 1000kg (1 Ton) load capacity, this ramp is the ultimate solution for forklifts, heavy industrial trolleys, wheelchairs, and commercial service vehicles. It is perfectly suited for warehouses, loading docks, manufacturing plants, and hospital entranceways, effectively bridging large height gaps and protecting floor edges.
Strategic Factory Partnership Advantages: By sourcing directly from our factory, you gain the advantage of direct wholesale pricing and a stable, high-capacity supply chain. We implement rigorous Quality Control (QC) protocols for every production batch and possess extensive experience in international B2B trade, ensuring professional documentation and reliable logistics for global safety equipment distributors.
Comprehensive OEM & Customization Support: We provide agile OEM/ODM services tailored to your specific project or brand requirements. Our factory can customize the product color (Classic Black, Industrial Grey, or Safety Orange), adjust material Shore A hardness, and provide embossed company logos. We also support pre-drilled mounting holes for permanent anchoring in high-traffic industrial zones.
Our TPR & TRA Series rubber ramps are engineered to provide a smooth, safe transition over doorway thresholds, curbs, and uneven flooring. Ranging from ultra-slim 4mm transition strips to robust 150mm heavy-duty ramps, these solutions are designed to eliminate tripping hazards and ensure effortless access for wheelchairs, trolleys, and service robots. Manufactured from high-density vulcanized rubber, our ramps combine industrial-grade durability with a refined finish suitable for both indoor and outdoor applications.
Eliminate Trip Hazards: Provides a precise, tapered edge to bridge uneven floor levels, significantly reducing liability in high-traffic public areas.
Heavy-Load Support: The TRA series supports up to 1000kg (1 Ton), making it ideal for moving heavy industrial equipment or pallet jacks.
Superior Traction: Features dual-pattern surfaces—circular indentations for multi-directional grip and longitudinal grooves for moisture drainage and slip resistance.
Floor Protection: Absorbs impact and prevents chipping or wear on expensive tile, laminate, or hardwood edges.
Quiet Operation: High-density rubber dampens the noise of wheeled traffic, creating a quieter environment in hospitals and offices.
Ideal for indoor flooring, robot vacuums, and light wheeled access.
| MODEL | Size (Length * Width * Height) | Weight (kg) | Material | Load Capacity |
| TPR04 | 900 * 40 * 4mm | 0.1kg | High-Density Rubber | [ Editable ] |
| TPR10 | 900 * 100 * 10mm | 0.8kg | High-Density Rubber | [ Editable ] |
| TPR20 | 900 * 150 * 20mm | 1.9kg | High-Density Rubber | [ Editable ] |
| TPR32 | 900 * 200 * 32mm | 2.9kg | High-Density Rubber | [ Editable ] |
| TPR40 | 900 * 250 * 40mm | 3.9kg | High-Density Rubber | [ Editable ] |
| TPR60 | 900 * 300 * 60mm | 7.7kg | High-Density Rubber | [ Editable ] |
| Note: Full size range available from 4mm to 60mm height. |
Reinforced design with higher vertical rise and 1-ton load-bearing capacity.
| MODEL | Size (Length * Width * Height) | Weight (kg) | Material | Load Capacity |
| TRA25 | 1100 * 210 * 25mm | 4.2kg | Vulcanized Rubber | 1000kg |
| TRA50 | 1100 * 410 * 50mm | 12kg | Vulcanized Rubber | 1000kg |
| TRA75 | 900 * 450 * 75mm | 14.6kg | Vulcanized Rubber | 1000kg |
| TRA100 | 900 * 610 * 100mm | 25.4kg | Vulcanized Rubber | 1000kg |
| TRA150 | 900 * 1000 * 150mm | 50kg | Vulcanized Rubber | 1000kg |
Precision Vulcanization: Raw rubber is processed under high pressure and heat to ensure maximum material density and long-term structural integrity.
Compression Molding: Uses high-grade steel molds to guarantee consistent dimensions and sharp, clean surface textures.
Surface Engineering: Integrated dual-anti-slip patterns (dots and lines) are molded directly into the material for permanent traction that won't wear off.
Quality Control: Every batch undergoes [ Edit Certification ] testing for hardness, load-bearing, and UV resistance.
As a direct manufacturer, we provide tailored solutions to meet your specific project requirements:
| Customizable Item | Detailed Options Available |
| Dimensions | Custom length cutting, width adjustment, or custom height molds for large orders. |
| Color Selection | Standard Grey/Black; Custom colors (Yellow, Blue, Red) for safety alerts or branding. |
| Branding & Logo | Embossed or molded company logos directly on the ramp surface. |
| Material Hardness | Customizable Shore A hardness for different acoustic or load-bearing needs. |
| Installation Prep | Optional pre-drilled mounting holes or pre-applied high-strength adhesive backing. |
Direct Factory Pricing: Source directly from the production line to maximize your project margins and competitive edge.
Scalable Manufacturing: High-volume capacity ensures reliable supply for major construction projects or retail inventory.
Export Expertise: Professional handling of international shipping standards, documentation, and durable palletized packaging.
Agile R&D: Dedicated technical team to assist with custom mold development and unique material specifications.
Secure your facility and improve accessibility with professional-grade rubber solutions.
[ SUBMIT YOUR INQUIRY ]
(Please include the Model Nos., required colors, and estimated quantities for a fast, professional quote. Our technical sales team will respond within 24 hours.)
Q1: Do you offer OEM or branding services?
Yes, we support OEM services including custom logo, mold design, color, odor control, packaging (carton labels), and material options.
Q2: Can I customize the size or shape of the product?
Absolutely. We can adjust dimensions, channel layout, or overall shape based on your technical drawings or specifications.
Q3: What kind of rubber materials do you use?
We use industrial-grade 100% recycled rubber by default. Natural rubber or custom compound formulas are also available upon request.
Q4: Is your product odorless or low-odor?
Yes. We offer low-odor or odor-controlled versions, especially for indoor or sensitive applications.
Q5: What is the minimum order quantity (MOQ)?
MOQ depends on the customization level. For standard models, we can offer flexible MOQs (e.g. 50–100 pcs). OEM orders may require higher quantities.
Q6: Do you support dropshipping or small-batch eCommerce sellers?
We mainly support bulk and wholesale orders, but we can assist with carton labeling and barcode printing for FBA, Shopify, or independent e-stores.
Q7: What certifications do you provide?
Upon request, we can provide material safety reports, RoHS, CE, and others.
Q8: Can I get a sample before placing a bulk order?
Yes, sample orders are available. Standard shipping or courier fees apply.
Q9: What’s the typical lead time for production?
15–25 days depending on complexity and quantity.
Q10: Do you offer assistance with international shipping?
Yes. We can ship by sea, air, or express. FOB, CIF, and DDP terms are all supported.
