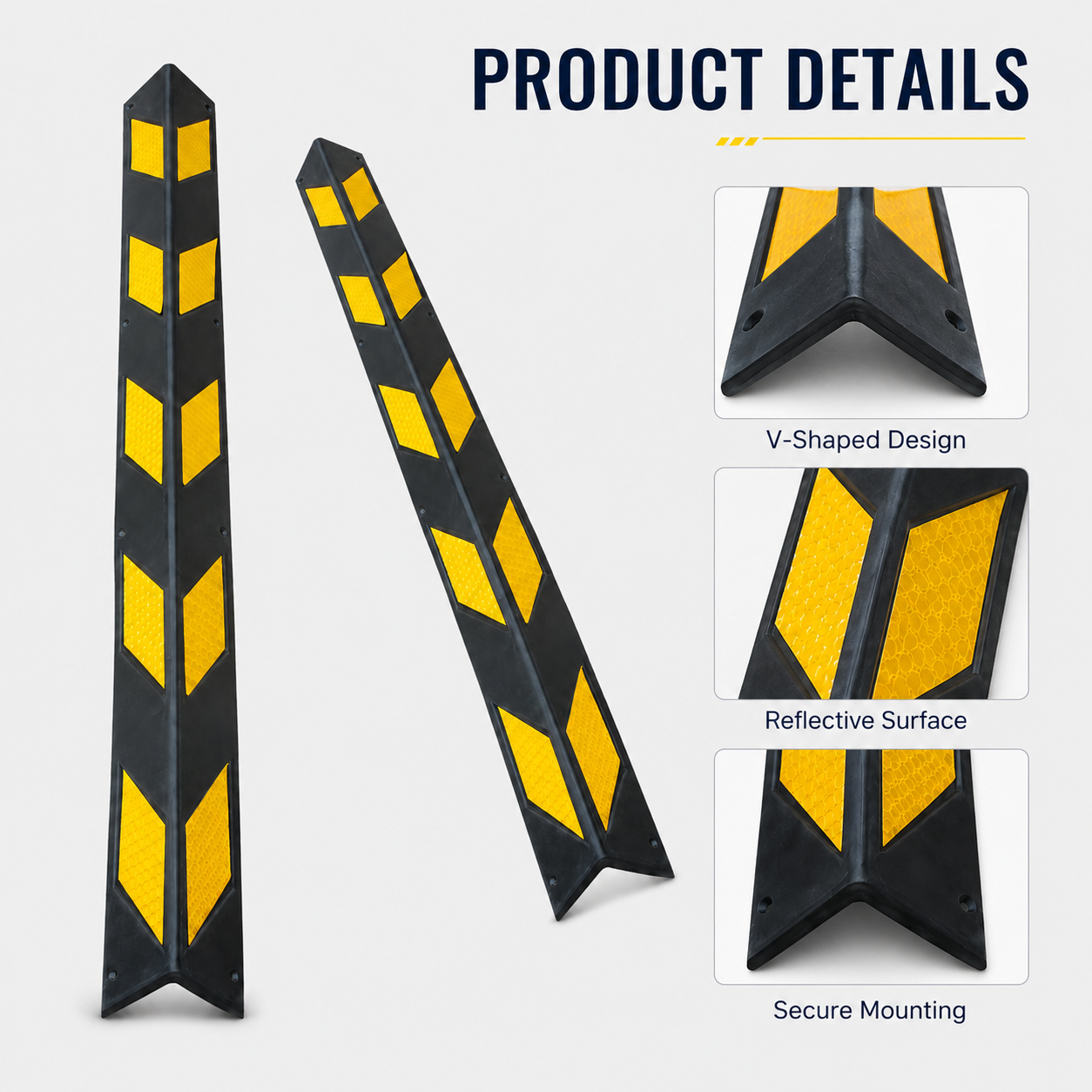

Premium Material & Engineering: Molded from heavy-duty, high-density industrial rubber weighing 3kg to ensure maximum impact absorption. Features a robust V-shaped structure with high-grade integrated retroreflective yellow arrows for superior low-light visibility and long-lasting durability without cracking.

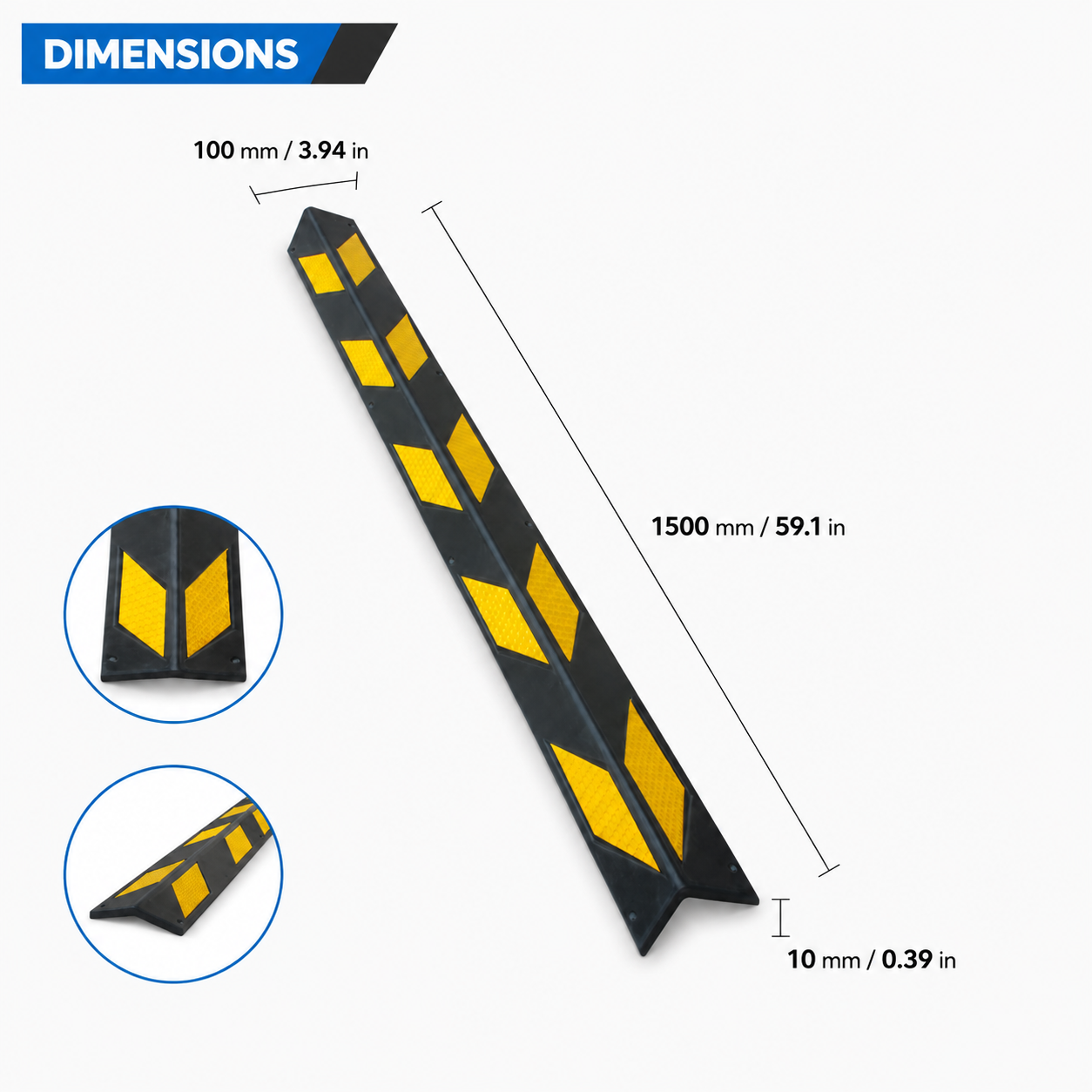

Optimized Industrial Sizing: Engineered to standard commercial specifications with a 1500mm height, 100mm wing width, and 10mm thickness. This slim yet impact-resistant profile provides extensive vertical coverage while preserving valuable driveway and parking space.

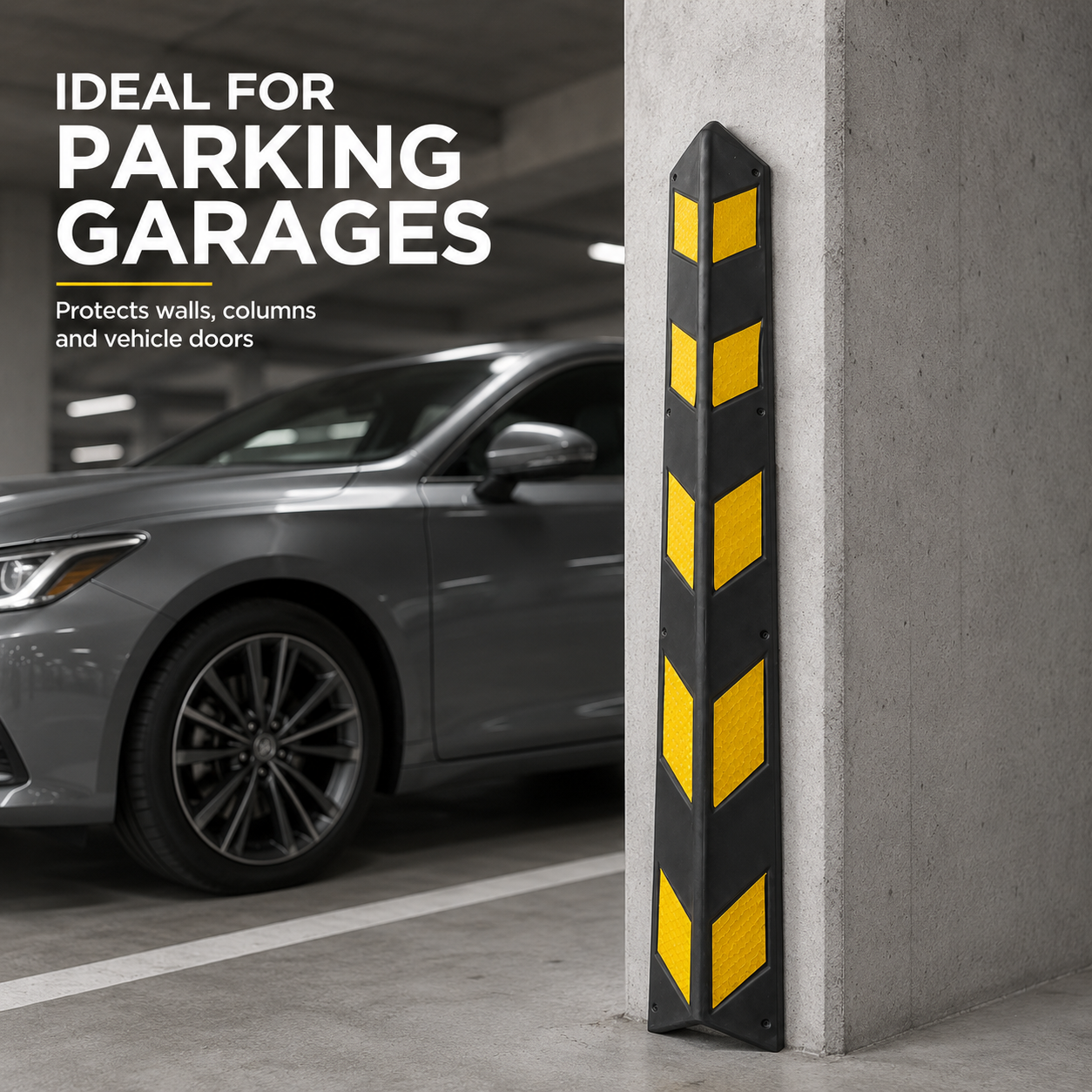

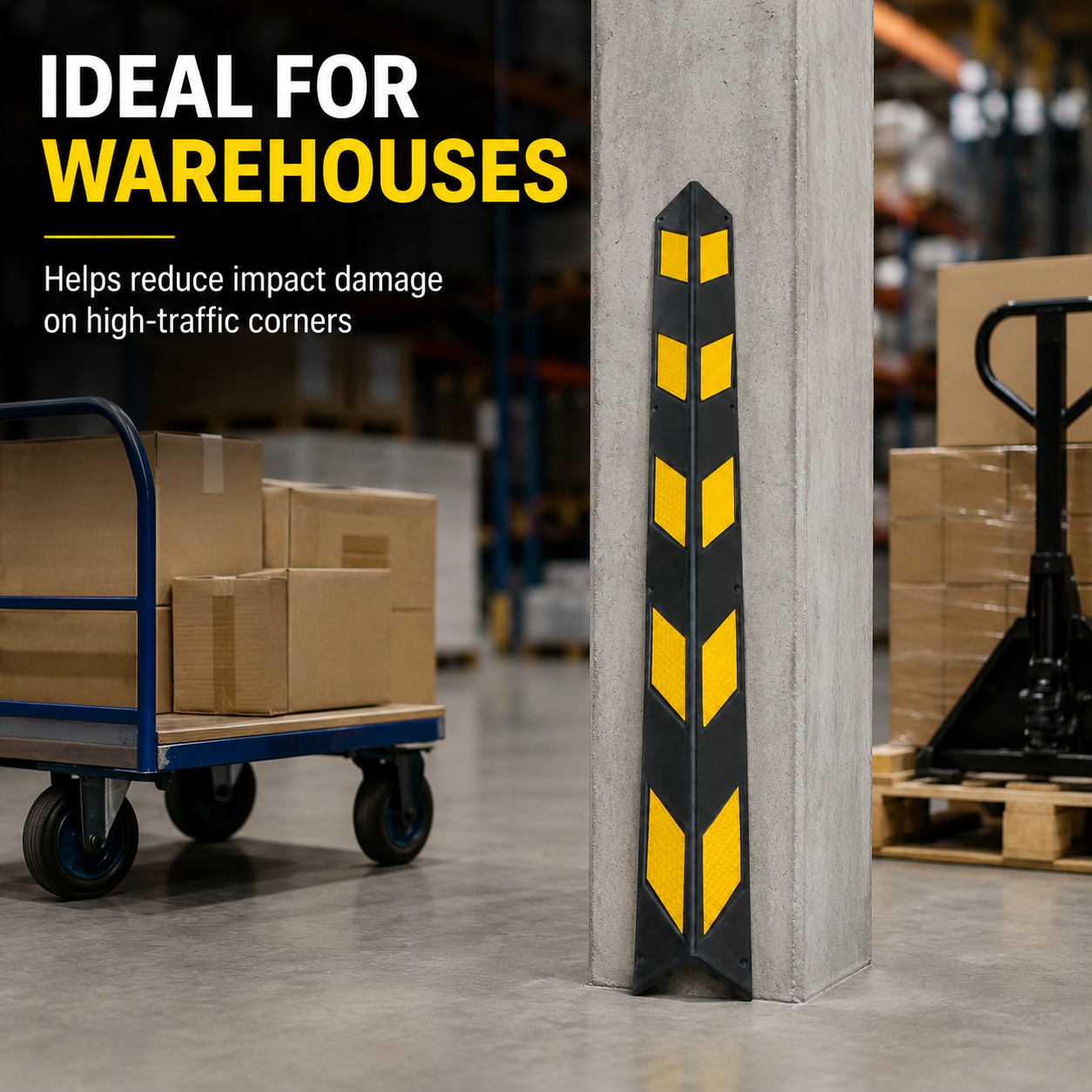

Heavy-Traffic Application: The ideal safety solution for protecting structural concrete columns, loading docks, and wall corners. Extensively used by facility managers and contractors in commercial parking garages, logistics hubs, industrial warehouses, and distribution centers.
Direct Factory Advantages: Sourced directly from our advanced manufacturing facility, eliminating intermediary markups to guarantee the most competitive wholesale B2B pricing. We support stable bulk supply chains, fast production lead times, and reliable international trade shipping terms.
Full OEM/ODM Customization: Fully customizable to match specific project and tender requirements. We support custom heights and thicknesses, upgraded reflectivity levels (HIP/Diamond grade), tailored pre-drilled mounting hole placement, and embossed or debossed corporate branding logos.
[Factory Direct] Direct source manufacturing to maximize procurement margins.
[Bulk & Wholesale] Flexible MOQ tiers optimized for global distributors and project contractors.
[OEM/ODM Capability] Support for custom sizing, specific reflectivity grades, and molded branding.
Our heavy-duty rubber corner guards provide high-impact protection for building columns, structures, and commercial walls against vehicle collisions, forklifts, and moving equipment. Engineered from high-density, durable molded rubber, these profiles feature pre-applied high-visibility reflective film to maximize safety in low-light environments. Ideal for commercial property managers, industrial contractors, and global distributors seeking long-lasting safety solutions.
Structural Damage Prevention: Absorbs severe impacts from forklifts, trucks, and tuggers, eliminating expensive concrete and column repair costs.
High Visibility & Low-Light Safety: Features standard industrial reflective tape to warn drivers proactively, significantly reducing facility accidents.
All-Weather & Heavy-Traffic Durability: Premium vulcanized rubber construction ensures no cracking, chipping, warping, or rotting under harsh indoor and outdoor environments.

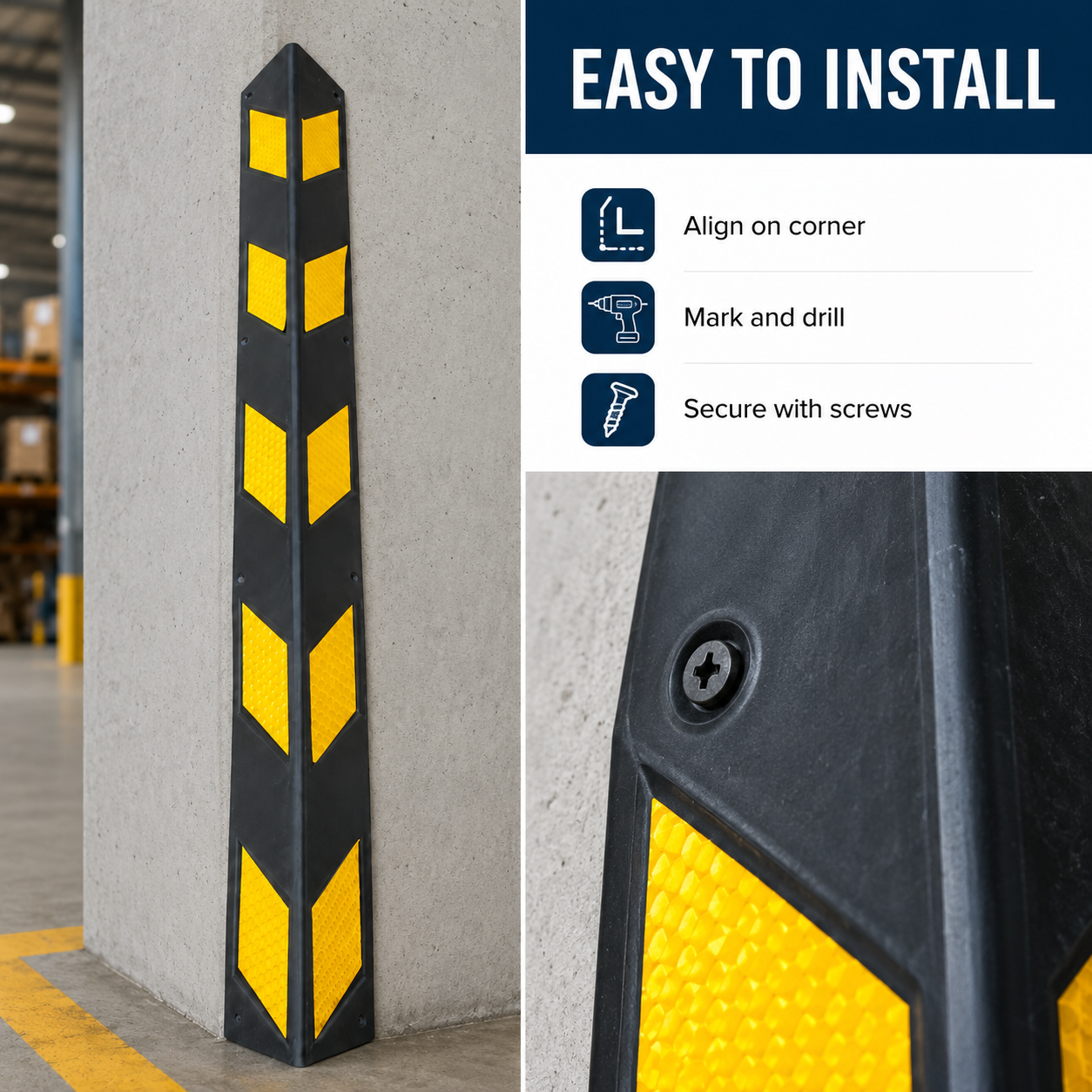

Cost-Effective & Easy Installation: Pre-drilled holes or easy adhesive application ensures quick deployment on concrete, steel, or brick surfaces with minimal downtime.
High-elasticity, compression-molded industrial rubber compound.
Resistant to UV rays, moisture, extreme temperatures, and automotive fluids.

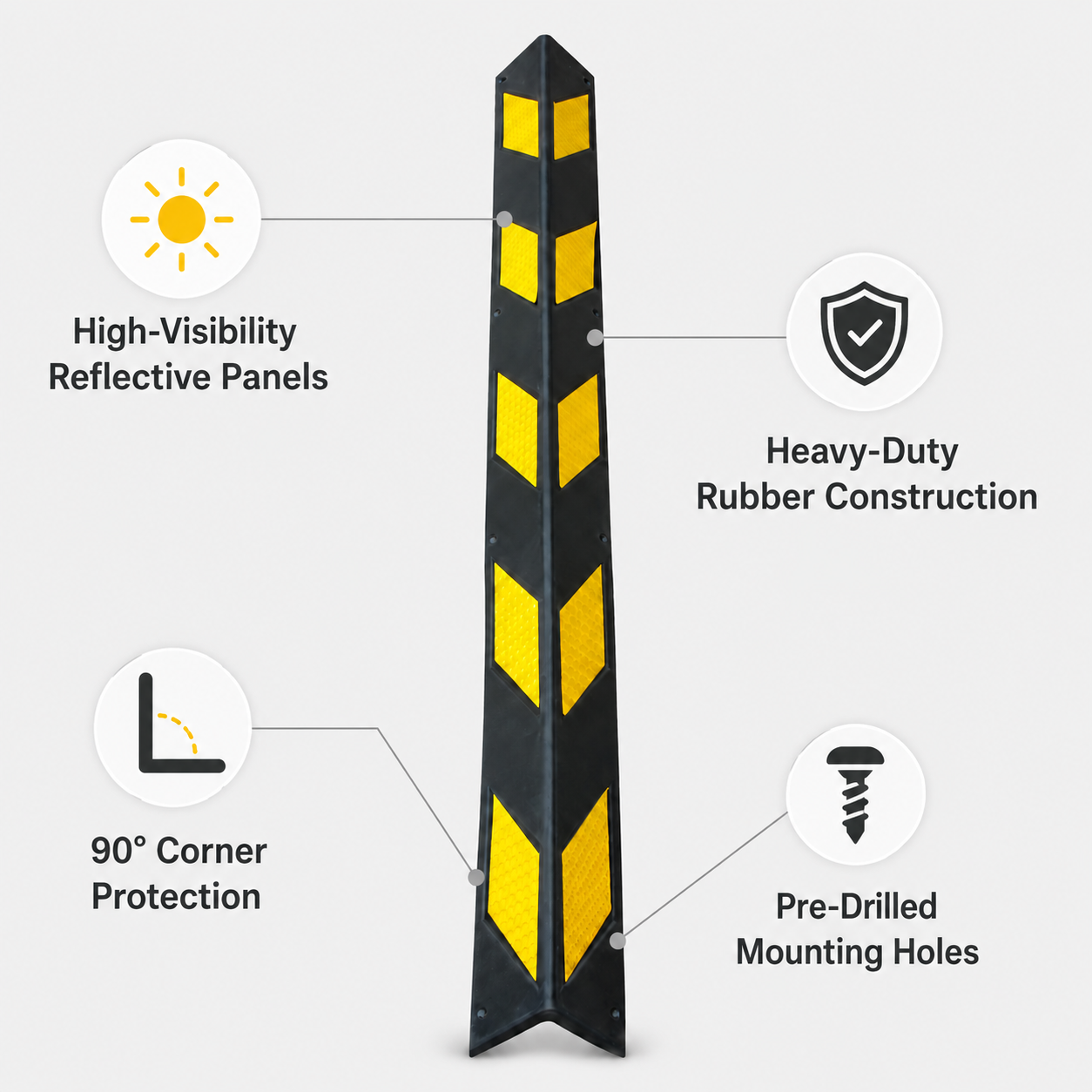

Integrated reflective strips for structural accents and enhanced visibility.
Versatile configurations matching diverse architectural profiles and loading dock requirements.
Below is our standard manufacturing lineup. Data fields are fully extractable and copyable for RFQ or purchase orders:
| Model | Height (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Material | Loading Capacity (kg) | Reflective Film |
| CG08 | 600 | 100 | 10 | 0.7 | Rubber | 15,000 | Regular reflector |
| CG09 | 800 | 100 | 10 | 2.0 | Rubber | 15,000 | Regular reflector |
| CG10 | 1000 | 100 | 10 | 2.0 | Rubber | 15,000 | Regular reflector |
| CG11 | 1200 | 100 | 10 | 2.2 | Rubber | 15,000 | Regular reflector |
| CG12 | 1500 | 100 | 10 | 3.0 | Rubber | 15,000 | Regular reflector |
| CG06 | 1000 | 145 | 10 | 4.2 | Rubber | 15,000 | Regular reflector |
| CG07 | 1200 | 140 | 10 | 4.0 | Rubber | 15,000 | Regular reflector |
| CG13 | 600 | 150 | 50 | 9.0 | Rubber | 15,000 | Regular reflector |
| CG17 | 800 | 50 | 5 | 0.5 | Rubber | 15,000 | Regular reflector |
| CG18 | 1000 | 50 | 5 | 0.8 | Rubber | 15,000 | Regular reflector |
| CG19 | 1200 | 50 | 5 | 0.85 | Rubber | 15,000 | Regular reflector |
| CG22 | 1000 | 100 | 10 | 2.0 | Rubber | 15,000 | Regular reflector |
As a direct source factory, we offer comprehensive customization to meet specific international project criteria and tender specifications. Use the table below to define your required bespoke configurations:
| Custom Parameter | Available Options & Specification Details |
| Dimensions (Height & Width) | Custom heights up to 2000mm; custom wing widths for unique column angles. |
| Thickness & Profile | Adjustable heavy-impact thickness; options for rounded corners or L-shaped profiles. |
| Reflective Film Upgrades | Engineering Grade (EG), High-Intensity Prismatic (HIP), or Diamond Grade reflectivity; custom color combinations (Yellow/Black, White/Red, Plain). |
| Pre-drilled Mounting Holes | Custom position, count, and diameter of installation holes for rapid anchor bolting. |
| Logo & Brand Molding | Debossed or embossed corporate branding, logos, or part numbers directly molded into the rubber matrix. |
| Material Compounding | Custom rubber formulations for specific flame-retardancy, oil resistance, or low-odor indoor applications. |
Raw Material Compounding: High-grade recycled and virgin rubber matrices are combined with premium anti-UV stabilizers and reinforcing agents.
High-Pressure Precision Molding: Formed under extreme heat and hydraulic pressure to maximize structural density and high impact resistance.
Automated Vulcanization: Optimizes tensile strength, flexibility, and dimensional memory profiles across all production batches.
Reflective Integration & QC: Precision application of industrial reflective films followed by automated strict dimensional checks, weight verification, and impact fatigue testing.
Direct Source Factory: Benefit from direct manufacturer pricing without intermediary markups, ensuring maximizing your margin potential.
Mass Production Capacity: Scalable manufacturing lines running continuously to ensure short lead times and stable supply chains for large-scale municipal or corporate projects.
Strict Compliance & Quality Control: Built to meet international traffic and industrial safety standards, offering consistent density and durability.
Flexible Trade Terms: Full support for commercial shipping arrangements, including FOB, CIF, EXW, and customized DDP logistics.
Q1: Do you offer OEM or branding services?
Yes, we support OEM services including custom logo, mold design, color, odor control, packaging (carton labels), and material options.
Q2: Can I customize the size or shape of the product?
Absolutely. We can adjust dimensions, channel layout, or overall shape based on your technical drawings or specifications.
Q3: What kind of rubber materials do you use?
We use industrial-grade 100% recycled rubber by default. Natural rubber or custom compound formulas are also available upon request.
Q4: Is your product odorless or low-odor?
Yes. We offer low-odor or odor-controlled versions, especially for indoor or sensitive applications.
Q5: What is the minimum order quantity (MOQ)?
MOQ depends on the customization level. For standard models, we can offer flexible MOQs (e.g. 50–100 pcs). OEM orders may require higher quantities.
Q6: Do you support dropshipping or small-batch eCommerce sellers?
We mainly support bulk and wholesale orders, but we can assist with carton labeling and barcode printing for FBA, Shopify, or independent e-stores.
Q7: What certifications do you provide?
Upon request, we can provide material safety reports, RoHS, CE, and others.
Q8: Can I get a sample before placing a bulk order?
Yes, sample orders are available. Standard shipping or courier fees apply.
Q9: What’s the typical lead time for production?
15–25 days depending on complexity and quantity.
Q10: Do you offer assistance with international shipping?
Yes. We can ship by sea, air, or express. FOB, CIF, and DDP terms are all supported.
